ASTRALUX

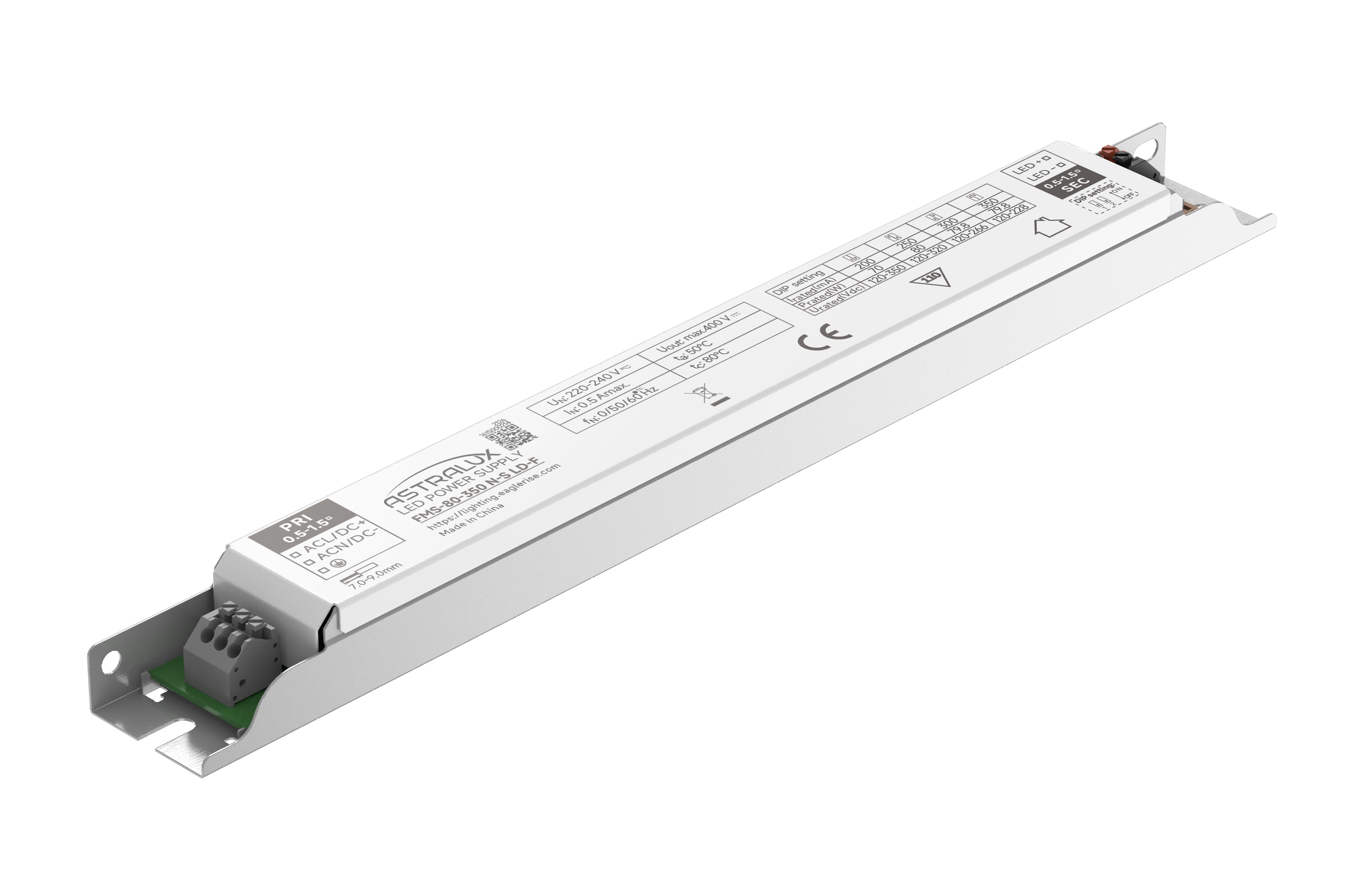

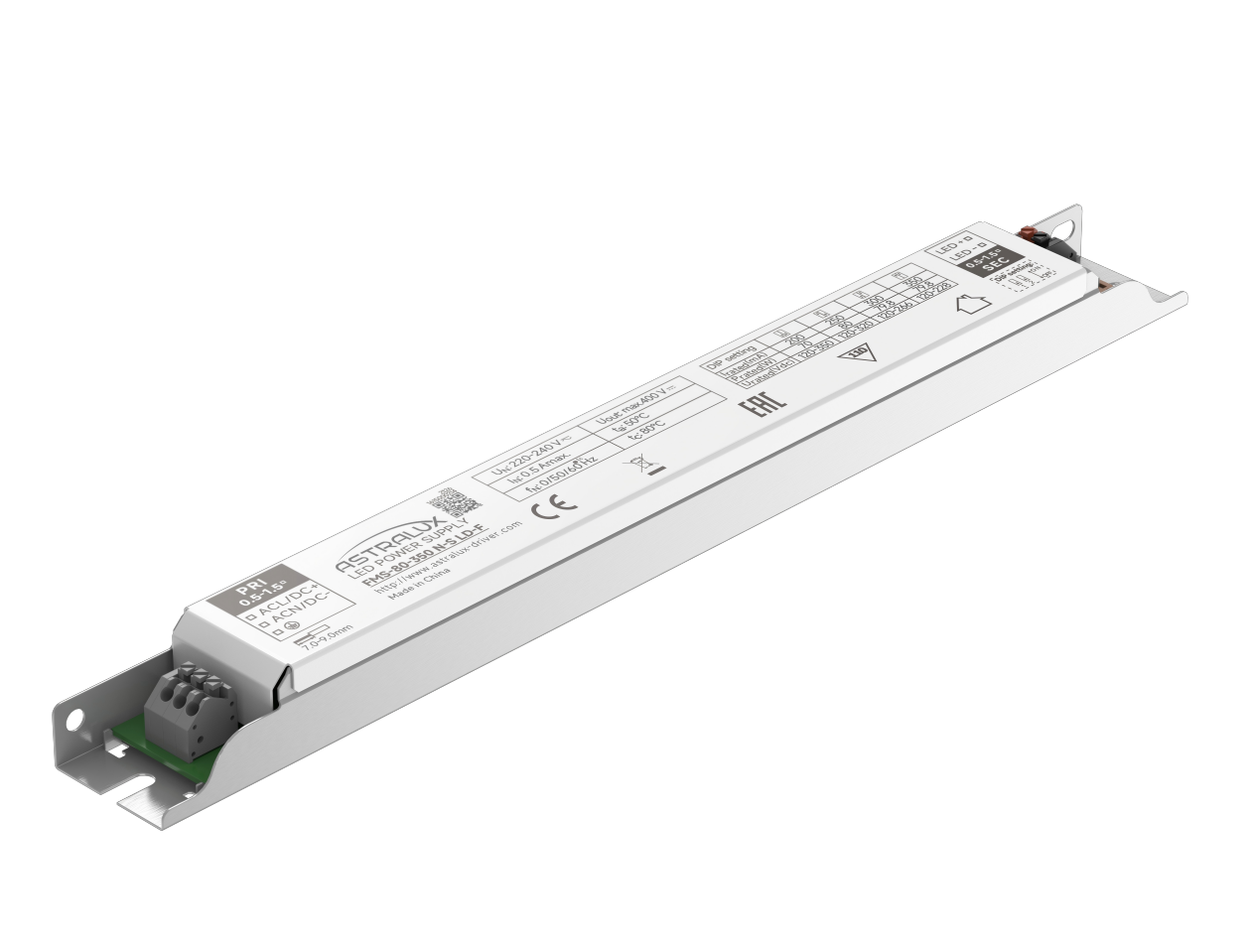

FMS-80-350 N-S LD-FSeries:Linear N-S LD-F

Features
· Class I,Non-isolated,Built-in
· Input Voltage 220-240VAC
· Protections: SCP/OVP/OTP
· Power Factor:0.95(Typ.)
· Efficiency :≥90% (Typ.)
· Adjustable Output Current with dip-switch
· 5 years warranty
· IP20

Applications
· Linear light
Contact us

Models Datasheet

Models Rated Input Voltage Input Current Max Frequency Output Current Range Output Voltage Rated Power
FMS-80-350 N-S LD-F
220-240V 0.5A 0/50/60 Hz 200 mA 120-350 VDC 80W
250 mA 120-320 VDC
300 mA 120-266 VDC
350 mA 120-228 VDC
